mat.h File Reference
Class Mat: a sparse matrix object. More...
#include <mc/mc_base.h>
#include <mc/mtool.h>
#include <mc/slu.h>
Include dependency graph for mat.h:

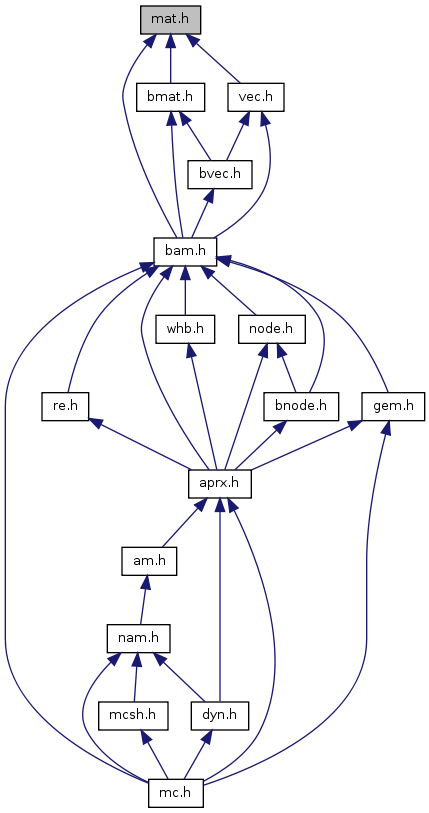

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | sMat |
| Contains public data memebers for Mat class. More... | |
Typedefs | |
| typedef struct sMat | Mat |
| Declaration of the Mat class as the Mat structure. | |
Functions | |
| Mat * | Mat_ctor (Vmem *vmem, const char *name, int pnumR, int pnumC) |
| The sparse matrix constructor. | |
| void | Mat_dtor (Mat **thee) |
| The sparse matrix destructor. | |
| void | Mat_initStructure (Mat *thee, MATformat frmt, MATsym sym, int numO, int *IJA, double *A) |
| Initialize the nonzero structure given structure information. | |
| void | Mat_copyStructure (Mat *thee, Mat *model) |
| Initialize the nonzero structure given structure information. | |
| void | Mat_killStructure (Mat *thee) |
| Kill the nonzero structure and structure information. | |
| int | Mat_numR (Mat *thee) |
| Return number of rows in the matrix. | |
| int | Mat_numC (Mat *thee) |
| Return number of columns in the matrix. | |
| int | Mat_numA (Mat *thee) |
| Return number of nonzeros we are actually storing. | |
| int | Mat_numO (Mat *thee) |
| Return number of nonzeros we are actually storing which are located in upper (or lower) triangle. | |
| int | Mat_numZ (Mat *thee) |
| Return number of nonzeros we WOULD be storing if we were ignoring symmetry and storing all nonzeros. | |
| MATformat | Mat_format (Mat *thee) |
| Return the format. | |
| MATsym | Mat_sym (Mat *thee) |
| Return the symmetry. | |
| MATstate | Mat_state (Mat *thee) |
| Return the state. | |
| MATimpl | Mat_impl (Mat *thee) |
| Return the impl. | |
| void | Mat_setFormat (Mat *thee, MATformat format) |
| Set the format. | |
| void | Mat_setSym (Mat *thee, MATsym sym) |
| Set the symmetry. | |
| void | Mat_setState (Mat *thee, MATstate state) |
| Set the state. | |
| void | Mat_setImpl (Mat *thee, MATimpl impl) |
| Set the impl. | |
| int | Mat_sizeIJA (Mat *thee) |
| Return total number of INTEGER STORAGE LOCATIONS in the matrix. | |
| int | Mat_sizeA (Mat *thee) |
| Return total number of REAL STORAGE LOCATIONS in the matrix. | |
| int * | Mat_IJA (Mat *thee) |
| Return the integer structure IJA. | |
| int * | Mat_IA (Mat *thee) |
| Return the integer structure IA. | |
| int * | Mat_JA (Mat *thee) |
| Return the integer structure JA. | |
| double * | Mat_A (Mat *thee) |
| Return the real structure A. | |
| double * | Mat_diag (Mat *thee) |
| Return the diagonal structure A. | |
| double * | Mat_offU (Mat *thee) |
| Return the upper-triangle structure A. | |
| double * | Mat_offL (Mat *thee) |
| Return the lower-triangle structure A. | |
| void | Mat_print (Mat *thee) |
| Print the matrix as a DENSE matrix in MATLAB format. | |
| void | Mat_printSp (Mat *thee, char *fname, int pflag) |
| Print the matrix as a SPARSE matrix in MATLAB format. | |
| void | Mat_printNoD (Mat *thee) |
| Print the matrix as a DENSE matrix in MATLAB format, but first zero out any rows/cols corresponding to Dirichlet boundary points. | |
| void | Mat_printSpNoD (Mat *thee, char *fname, int pflag) |
| Print the matrix as a DENSE matrix in MATLAB format, but first zero out any rows/cols corresponding to Dirichlet boundary points. | |
| void | Mat_zero (Mat *thee) |
| Clear the floating point storage for the sparse matrix. Also clear any sparse factorization storage. | |
| void | Mat_set (Mat *thee, int i, int j, double val) |
| Set a value in a matrix. | |
| void | Mat_addTo (Mat *thee, int i, int j, double val) |
| Add to a value in a matrix. | |
| void | Mat_buildBRC (Mat *thee, int numBR, int numBC, int *BR, int *BC) |
| Set the boundary row and column information. | |
| void | Mat_zeroBRC (Mat *thee) |
| Apply the boundary row and column information. | |
| void | Mat_diagBRC (Mat *thee) |
| Place identity entries on diagonal of boundary row/col. | |
| void | Mat_galerkin (Mat *thee, Mat *rmat, Mat *amat, Mat *pmat) |
| Enforce the Galerkin conditions algebraically. | |
| int | Mat_sluDirect (Mat *thee) |
| Make a decision about whether or not a sparse direct solver should be used in place of an iterative solver, based on the size of the system. | |
| void | Mat_sluCreate (Mat *thee) |
| Setup for a sparse LU factorization of matrix. | |
| int | Mat_sluFactor (Mat *thee) |
| Create the sparse LU factors for the system matrix. | |
| int | Mat_sluSolve (Mat *thee, int key, double *f, double *u) |
| Performs a forward/backward solve using the sparse LU factors. | |
| void | Mat_sluDestroy (Mat *thee) |
| Destroy the sparse LU factors for the system matrix. | |
| void | Mat_memChk (Mat *thee) |
| Print the exact current malloc usage. | |
| void | Mat_copy (Mat *thee, Mat *smat) |
| Copy a matrix. | |
| void | Mat_copyROW2COL (Mat *thee, Mat *smat) |
| Copy a matrix from ROW to COL. | |
| void | Mat_copyCOL2ROW (Mat *thee, Mat *smat) |
| Copy a matrix from COL to ROW. | |
| void | Mat_copyDRC2RLN (Mat *thee, Mat *smat) |
| Copy a matrix from DRC to RLN. | |
| void | Mat_copyROW2RLN (Mat *thee, Mat *smat) |
| Copy a matrix from ROW to RLN. | |
| void | Mat_copyCOL2RLN (Mat *thee, Mat *smat) |
| Copy a matrix from COL to RLN. | |
| void | Mat_copyRLN2ROW (Mat *thee, Mat *smat) |
| Copy a matrix from RLN to ROW. | |
| void | Mat_copyDRC2CLN (Mat *thee, Mat *smat) |
| Copy a matrix from DRC to CLN. | |
| void | Mat_copyROW2CLN (Mat *thee, Mat *smat) |
| Copy a matrix from ROW to CLN. | |
| void | Mat_copyCOL2CLN (Mat *thee, Mat *smat) |
| Copy a matrix from COL to CLN. | |
| void | Mat_copyCLN2COL (Mat *thee, Mat *smat) |
| Copy a matrix from CLN to COL. | |
| void | Mat_copyCLN2RLN (Mat *thee, Mat *smat) |
| Copy a matrix from CLN to RLN. | |
| void | Mat_copyRLN2CLN (Mat *thee, Mat *smat) |
| Copy a matrix from RLN to CLN. | |
| void | Mat_copyDRC2XLN (Mat *thee, Mat *smat) |
| Copy a matrix from DRC to XLN. | |
| void | Mat_copyROW2XLN (Mat *thee, Mat *smat) |
| Copy a matrix from ROW to XLN. | |
| void | Mat_copyCOL2XLN (Mat *thee, Mat *smat) |
| Copy a matrix from COL to XLN. | |
| void | Mat_copyRLN2XLN (Mat *thee, Mat *smat) |
| Copy a matrix from RLN to XLN. | |
| void | Mat_copyCLN2XLN (Mat *thee, Mat *smat) |
| Copy a matrix from CLN to XLN. | |
| void | Mat_copyXLN2DRC (Mat *thee, Mat *smat) |
| Copy a matrix from XLN to DRC. | |
| void | Mat_copyXLN2ROW (Mat *thee, Mat *smat) |
| Copy a matrix from XLN to ROW. | |
| void | Mat_copyXLN2COL (Mat *thee, Mat *smat) |
| Copy a matrix from XLN to COL. | |
| void | Mat_copyXLN2RLN (Mat *thee, Mat *smat) |
| Copy a matrix from XLN to RLN. | |
| void | Mat_copyXLN2CLN (Mat *thee, Mat *smat) |
| Copy a matrix from XLN to CLN. | |
| void | Mat_squeezeBRC (Mat *thee, int key) |
| Remove the boundary rows or columns from a matrix. | |
| void | Mat_copy2 (Mat *Y, Mat *X) |
| Raw copy of the nonzeros of X into Y. | |
| void | Mat_axpy (Mat *Y, Mat *X, double val, int key) |
| scalar times a Mat plus a Mat: Y += val*X. | |
| void | Mat_initStructureLN (Mat *thee, MATformat frmt, MATsym sym) |
| Initialize the nonzero structure given structure information. | |
| void | Mat_killStructureLN (Mat *thee) |
| Kill the nonzero structure and structure information. | |
| LinkRC * | Mat_accessXLN (Mat *thee, int idx, int key) |
| Access the first element in the ROW or COL of an XLN. | |
| void | Mat_contribXLN (Mat *thee, int key, int i, int j, double val) |
| Set or add a value to a doubly linked matrix entry array. | |
| void | Mat_contribNSYMXLN (Mat *thee, int key, int i, int j, double val) |
| Set or add a value to a NOTSYM XLN matrix. | |
| void | Mat_contribSSYMXLN (Mat *thee, int key, int i, int j, double val) |
| Set or add a value to a STRUC_SYM XLN matrix. | |
| void | Mat_contribSYMXLN (Mat *thee, int key, int i, int j, double val) |
| Set or add a value to a SYM XLN Matrix. | |
| void | Mat_printLN (Mat *thee) |
| Print an LN format matrix as a DENSE matrix in MATLAB format. | |
| void | Mat_printLNSp (Mat *thee, char *fname, int pflag) |
| Print an LN format matrix as a SPARSE matrix in MATLAB format. | |
Detailed Description
Class Mat: a sparse matrix object.
- Note:
- None
* This class support several datastructures for sparse matrices. * The following formats are supported (see below for descriptions): * * ZERO (the zero matrix; no storage at all) * DRC (diag-row-col-YSMP variant) * ROW (row-YSMP) * COL (col-YSMP) * SLU (sparse-LU) * RLN (row-linked-list) * CLN (col-linked-list) * XLN (row-linked-list AND col-linked-list) * RFL (row-wise dense matrix; i.e., C-style 2D array) * CFL (col-wise dense matrix; i.e., FORTRAN-style 2D array) * * NOTE: This class is very efficient in both memory and operation * complexity for LARGE sparse matrices. It also supports dense * matrices (RFL and CFL formats). * * ANOTHER NOTE: Only ONE format is supported at a time; i.e., * you cannot simultaneously have a matrix in multiple formats * maintained WITHIN that Mat datastructure. You must create a * new one of the desired type, and copy the old one into it, if * you want to have an existing matrix represented in a different * format. (This is a change from the previous version of this * library.) * * Formats: Here is a brief description of the suppored matrix formats: * * ZERO: . This is a zero matrix (no storage). * * DRC: \----- This is a symmetric storage * |\---- format; only the upper triangle * ||\--- need be stored in the case of * |||\-- symmetry. However, we must assume * ||||\- that the upper and lower triangles * |||||\ have identical nonzero structures; * the matrix MUST BE SQUARE. * The diagonal entries are stored * separately from the triangles. * * NOTE: In the case of symmetry, * we simply point the lower triangle * nonzeros A to the upper, as well as * the IA and JA pointers. * * ROW: --------- This is a completely nonsymmetric * --------- storage format; no provision is * --------- made to handle storage savings * --------- in the case of symmetry. * No assumptions are made about the * nonzero-structure of the matrix; * the matrix can be non-square. * Row-start pointers are kept in IA, * and column indices are kept in JA. * The diagonal entriecs are treated * like any other row entry. * * COL: |||| This is a column-wise variant * |||| of the ROW format. Col-start * |||| pointers are kept in IA, and * |||| row indices are kept in JA. * |||| * |||| * |||| * |||| * |||| * * SLU: [LU] This format is determined by * the particular sparse direct * solver which we use to factor * the matrix, and we do not use * any information about the * particular storage format. * * RLN: [linked-list] This is a row-wise linked list * representation of the matrix. * It is usually used to accumulate * a matrix product for which there * is no a priori knowledge about * the resulting nonzero structure. * It is usually converted into one * of the other matrix formats before * it is used for anything else, since * linked-list implementations of * operations such as matrix-vector * products tend to be inefficient. * * CLN: [linked-list] This is a column-wise variant * of the RLN format. * * XLN: [linked-list] Simultaneous RLN and CLN. * * RFL: --------- This is a dense row-wise storage * --------- format. All nonzeros are stored; * --------- no integer storage is used. * * CFL: |||| This is a dense col-wise storage * |||| format. All nonzeros are stored; * |||| no integer storage is used. * * Storage: Details of the DRC/ROW/COL format storage are as follows. * The integer part IJA of the structure has the following layout: * * IJA = [ IA ; JA ] * * length(IA) = N+1 row(col) start pointers into JA/A * length(JA) = NZ col(row) indices for each row(col) * ------------------------ * length(IJA) = N+1+NZ * * which is a DRC, ROW, or COL pointer structure for a matrix. * The IA part of the array points into the JA portion of the array * for the beginning of each row (or column) left-to-right * (or top-to-bottom). * * The JA portion then contains the column (or row) indices for the * corresponding entries in that row (or column), ordered * left-to-right (or top to bottom). * * The corresponding array of the actual nonzeros in the case of * the DRC style format has the form: * * A = [ diag ; offU ; offL ] * * length(diag) = N (diag) * length(offU) = NZ (upper-triang) * length(offL) = NZ (lower-triang, or null if symmetric) * ----------------------- * length(A) = N+2*NZ (or N+NZ if symmetric) * * In the case of ROW or COL, the matrix A is simply a row-wise or * col-wise ordering of all of the nozeros, with no special role * played by the diagonal entries. *
- Version:
- Id
- mat.h,v 1.46 2009/04/24 22:54:03 fetk Exp
- Attention:
* * MC = < Manifold Code > * Copyright (C) 1994--2008 Michael Holst * * This library is free software; you can redistribute it and/or * modify it under the terms of the GNU Lesser General Public * License as published by the Free Software Foundation; either * version 2.1 of the License, or (at your option) any later version. * * This library is distributed in the hope that it will be useful, * but WITHOUT ANY WARRANTY; without even the implied warranty of * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU * Lesser General Public License for more details. * * You should have received a copy of the GNU Lesser General Public * License along with this library; if not, write to the Free Software * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA * *
