bmat.h File Reference
Class Bmat: a block sparse matrix object. More...
#include <mc/mc_base.h>
#include <mc/mat.h>

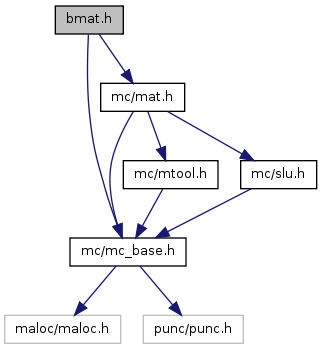

Include dependency graph for bmat.h:

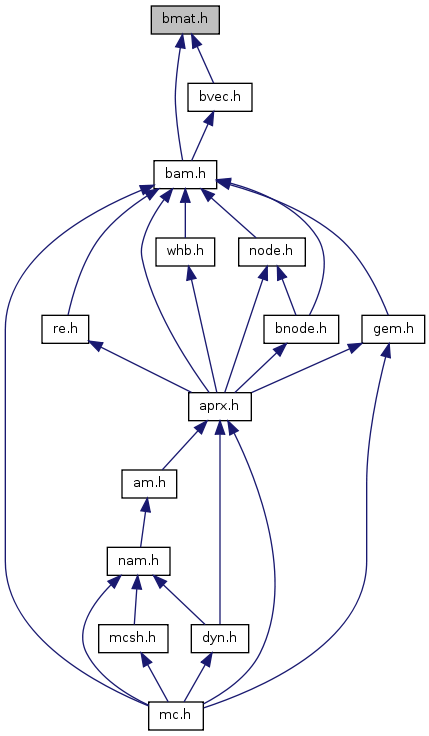

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | sBmat |
| Contains public data memebers for Bmat class. More... | |
Typedefs | |
| typedef struct sBmat | Bmat |
| Declaration of the Bmat class as the Bmat structure. | |
Functions | |
| Bmat * | Bmat_ctor (Vmem *vmem, const char *name, int pnumB, int pnumR[MAXV], int pnumC[MAXV], MATmirror pmirror[MAXV][MAXV]) |
| The block sparse matrix constructor. | |
| void | Bmat_dtor (Bmat **thee) |
| The block sparse matrix destructor. | |
| void | Bmat_initStructure (Bmat *thee, MATformat pfrmt[MAXV][MAXV], MATsym psym[MAXV][MAXV], int pnumO[MAXV][MAXV], int *IJA[MAXV][MAXV]) |
| Initialize the nonzero structure given structure information. | |
| void | Bmat_copyStructure (Bmat *thee, Bmat *model) |
| Copy the nonzero structure from an input model. | |
| void | Bmat_killStructure (Bmat *thee) |
| Kill the nonzero structure. | |
| int | Bmat_numB (Bmat *thee) |
| Return the number of blocks. | |
| int | Bmat_numR (Bmat *thee, int p, int q) |
| Return the number of rows. | |
| int | Bmat_numC (Bmat *thee, int p, int q) |
| Return the number of columns. | |
| int | Bmat_numA (Bmat *thee, int p, int q) |
| Return the number of nonzeros we actually store in a block. | |
| int | Bmat_numO (Bmat *thee, int p, int q) |
| Return the number of nonzeros we actually store in a block which are actually in the strict upper-triangle of the block (DRC only). | |
| int | Bmat_numZ (Bmat *thee, int p, int q) |
| Return the number of nonzeros we WOULD actually store in a block if we ignored symmetry and stored everything. | |
| int | Bmat_numRT (Bmat *thee) |
| Return the total number of rows. | |
| int | Bmat_numCT (Bmat *thee) |
| Return the total number of columns. | |
| int | Bmat_numAT (Bmat *thee) |
| Return the total number of nonzeros we are actually storing. | |
| int | Bmat_numOT (Bmat *thee) |
| Return the total number of nonzeros we are actually storing which are located in the strict upper-triangle. | |
| int | Bmat_numZT (Bmat *thee) |
| Return the total number of nonzeros we WOULD be storing if we ignored all symmetry in all blocks and stored everything. | |
| MATformat | Bmat_format (Bmat *thee, int p, int q) |
| Return the format of the block. | |
| MATsym | Bmat_sym (Bmat *thee, int p, int q) |
| Return the symmetry of the block. | |
| MATstate | Bmat_state (Bmat *thee, int p, int q) |
| Return the state of the block. | |
| MATimpl | Bmat_impl (Bmat *thee, int p, int q) |
| Return the implicitness of the block. | |
| MATmirror | Bmat_mirror (Bmat *thee, int p, int q) |
| Return the mirror-ness of the block. | |
| int | Bmat_sizeA (Bmat *thee) |
| Return the number of nonzeros in all blocks. | |
| int | Bmat_sizeIJA (Bmat *thee) |
| Return the numer of integer storage locations used. | |
| int * | Bmat_IJA (Bmat *thee, int p, int q) |
| Return the integer structure IJA. | |
| int * | Bmat_IA (Bmat *thee, int p, int q) |
| Return the integer structure IA. | |
| int * | Bmat_JA (Bmat *thee, int p, int q) |
| Return the integer structure JA. | |
| double * | Bmat_A (Bmat *thee, int p, int q) |
| Return the real structure A. | |
| double * | Bmat_diag (Bmat *thee, int p, int q) |
| Return the diagonal of A (DRC only). | |
| double * | Bmat_offU (Bmat *thee, int p, int q) |
| Return the strict upper triangle of A (DRC only). | |
| double * | Bmat_offL (Bmat *thee, int p, int q) |
| Return the strict lower triangle of A (DRC only). | |
| void | Bmat_print (Bmat *thee) |
| Print the prolongation matrix blocks. | |
| void | Bmat_printSp (Bmat *thee, char *fname, int pflag) |
| Print the prolongation matrix in MATLAB sparse form. | |
| void | Bmat_printNoD (Bmat *thee) |
| Print the matrix as a DENSE matrix in MATLAB format, but first zero out any rows/cols corresponding to Dirichlet boundary points. | |
| void | Bmat_printSpNoD (Bmat *thee, char *fname, int pflag) |
| Print the matrix as a DENSE matrix in MATLAB format, but first zero out any rows/cols corresponding to Dirichlet boundary points. | |
| void | Bmat_zero (Bmat *thee) |
| Clear the floating point storage for the sparse matrix. Also clear any sparse factorization storage. | |
| void | Bmat_diri (Bmat *thee) |
| Setup the dirichlet equations. | |
| void | Bmat_set (Bmat *thee, int p, int q, int i, int j, double val) |
| Set the (i,j)-th entry of the (p,q)-th block to < val >. | |
| void | Bmat_addTo (Bmat *thee, int p, int q, int i, int j, double val) |
| Contribute < val > to the (i,j)-th entry of the (p,q)-th block. | |
| void | Bmat_galerkin (Bmat *thee, Bmat *rmat, Bmat *amat, Bmat *pmat) |
| Enforce the Galerkin conditions algebraically. | |
| int | Bmat_sluDirect (Bmat *thee) |
| Make a decision about whether or not a sparse direct solver should be used in place of an iterative solver, based on the size of the system. | |
| void | Bmat_sluCreate (Bmat *thee) |
| Create the global matrix from the blocks in the modified ROW or COL storage format. This is useful for preparing a single global matrix for input to e.g. a sparse direct solver. | |
| int | Bmat_sluFactor (Bmat *thee) |
| Create the sparse LU factors for global matrix. | |
| int | Bmat_sluSolve (Bmat *thee, int key, double *f, double *u) |
| Forward/backward solve using sparse LU factors of global matrix. | |
| void | Bmat_sluDestroy (Bmat *thee) |
| Destroy the sparse LU factors for the system matrix. | |
| void | Bmat_memChk (Bmat *thee) |
| Print the exact current malloc usage. | |
| Bmat * | Bmat_clone (Vmem *vmem, char *name, Bmat *X) |
| Construct a clone of a Bmat with the same structure. | |
| void | Bmat_copy (Bmat *Y, Bmat *X) |
| Copy a block matrix. | |
| void | Bmat_squeezeBRC (Bmat *thee, int key) |
| Remove the boundary rows or columns from a block matrix. | |
| void | Bmat_copy2 (Bmat *Y, Bmat *X) |
| Copy a block matrix. | |
| void | Bmat_axpy (Bmat *Y, Bmat *X, double val, int key) |
| Scalar times a Bmat plus a Bmat: Y += val*X. | |
Detailed Description
Class Bmat: a block sparse matrix object.
- Note:
- None
* This class extends the Mat class to block matrices built as * retangular arrays of Mat objects. * * The Bmat class is very efficient in memory and operation * complexity for large sparse block matrices having a few * (e.g. 1-20) blocks, each of which are themselves large * (e.g. > 1000 rows) sparse matrices. This class IS NOT very * efficient for large sparse matrices consisting of many * (e.g. > 20) small blocks (e.g. < 1000 rows). This is because * each block is a Mat object which contains some overhead. * Note that If some of the matrix blocks are symmetric images * of each other, we represent the block only once. * * Blocks: The global matrix from a petrov-galerkin FEM discretization of * a PDE will be stored in blocks; for example, an 18x18 matrix * consisting of 3 blocks of varying sizes (as in the case of a * 3-component system, with different number of degrees of freedom * on different components) will be stored as: * * A = \----- --- --------- The block sizes in this example are: * |\---- --- --------- * ||\--- --- --------- block[0][0] = 6x6 * |||\-- --- --------- block[1][1] = 3x3 * ||||\- --- --------- block[2][2] = 9x9 * |||||\ --- --------- block[0][1] = 6x3 * block[0][2] = 6x9 * |||||| \-- --------- block[1][2] = 3x9 * |||||| |\- --------- block[1][0] = 3x6 * |||||| ||\ --------- block[2][0] = 9x6 * block[2][1] = 9x3 * |||||| ||| \-------- * |||||| ||| |\------- * |||||| ||| ||\------ * |||||| ||| |||\----- * |||||| ||| ||||\---- * |||||| ||| |||||\--- * |||||| ||| ||||||\-- * |||||| ||| |||||||\- * |||||| ||| ||||||||\ * * A prolongation matrix will be stored row-wise in blocks. * For example, a prolongation matrix for a 2-component system, * mapping 3-vectors in the first component to 9-vectors, and * mapping 6-vectors in the second component to 10-vectors, will * be stored in blocks as: * * P = --- oooooo The blocks have the shapes: * --- oooooo * --- oooooo block[0][0] = 9x3 * --- oooooo block[0][1] = 9x6 * --- oooooo block[1][0] = 10x3 * --- oooooo block[1][1] = 10x6 * --- oooooo * --- oooooo * --- oooooo * ooo ------ * ooo ------ * ooo ------ * ooo ------ * ooo ------ * ooo ------ * ooo ------ * ooo ------ * ooo ------ * ooo ------ * * The adjoint would likely be used as the restriction matrix, * which would then be stored columnwise by simply adjusting * some pointers: * * R = ||||||||| oooooooooo The blocks have the shapes: * ||||||||| oooooooooo * ||||||||| oooooooooo block[0][0] = 3x9 * ooooooooo |||||||||| block[0][1] = 3x10 * ooooooooo |||||||||| block[1][0] = 6x9 * ooooooooo |||||||||| block[1][1] = 6x10 * ooooooooo |||||||||| * ooooooooo |||||||||| * ooooooooo |||||||||| *
- Version:
- Id
- bmat.h,v 1.34 2009/04/24 22:53:59 fetk Exp
- Attention:
* * MC = < Manifold Code > * Copyright (C) 1994--2008 Michael Holst * * This library is free software; you can redistribute it and/or * modify it under the terms of the GNU Lesser General Public * License as published by the Free Software Foundation; either * version 2.1 of the License, or (at your option) any later version. * * This library is distributed in the hope that it will be useful, * but WITHOUT ANY WARRANTY; without even the implied warranty of * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU * Lesser General Public License for more details. * * You should have received a copy of the GNU Lesser General Public * License along with this library; if not, write to the Free Software * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA * *
